- Isolation of Responsibilities

• Business Logic (BLoc)
• UI
• Use Cases
• Service Adapters

- Decoupled Structure

• Easily swap services, databases, etc.
• Classes are not dependent on each other
• Entities are concerned only about their own functionalities
• Use Cases
• Service Adapters

- Single Purpose Entities

• Classes serve one purpose

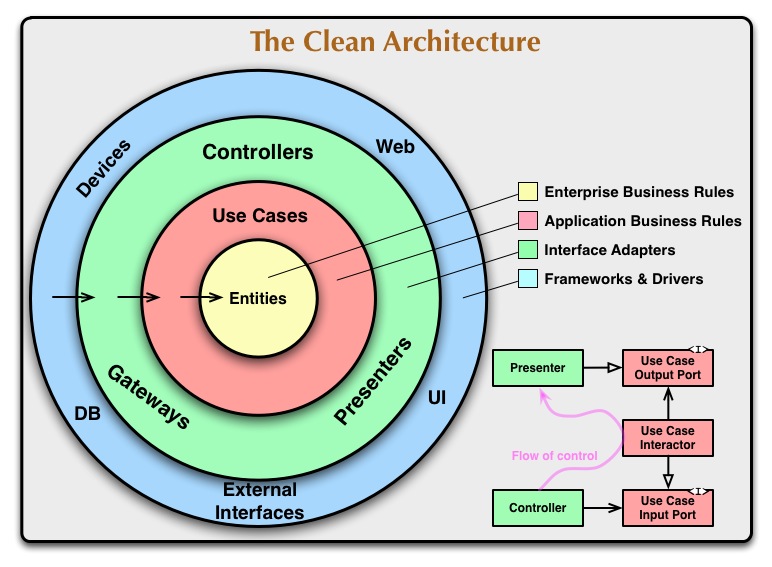

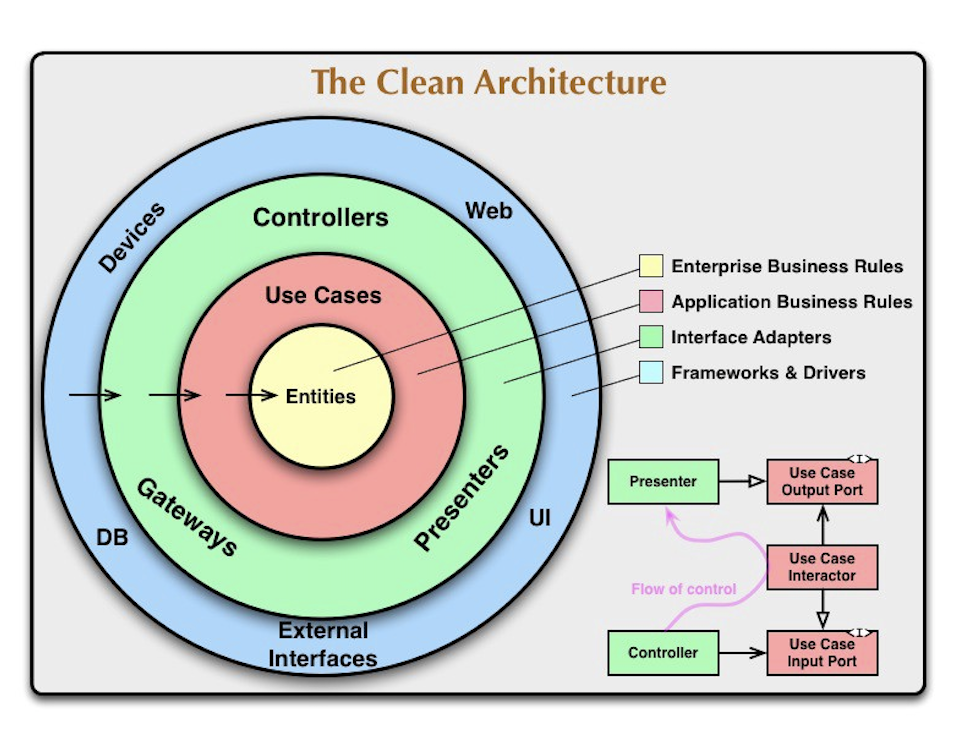

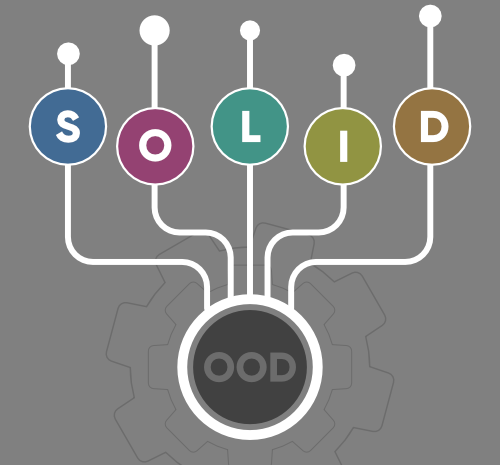

The Clean Architecture is built upon the "SOLID" principles which are:

• S: Single Responsibility

- Classes/Entities should have one purpose, not be God classes

• O: Open/Closed Approach

- Classes should be inheritable for functionality but not modifiable

• L: Liskov Substitution

- Every subclass should be substitutable for their parent class

• I: Interface Segregation

- Don’t use a generalized interface as a one-all be all interface. Instead, implement specific interfaces for their specific needs.

• D: Dependency Inversion

- Entities should depend on abstractions not on each other.

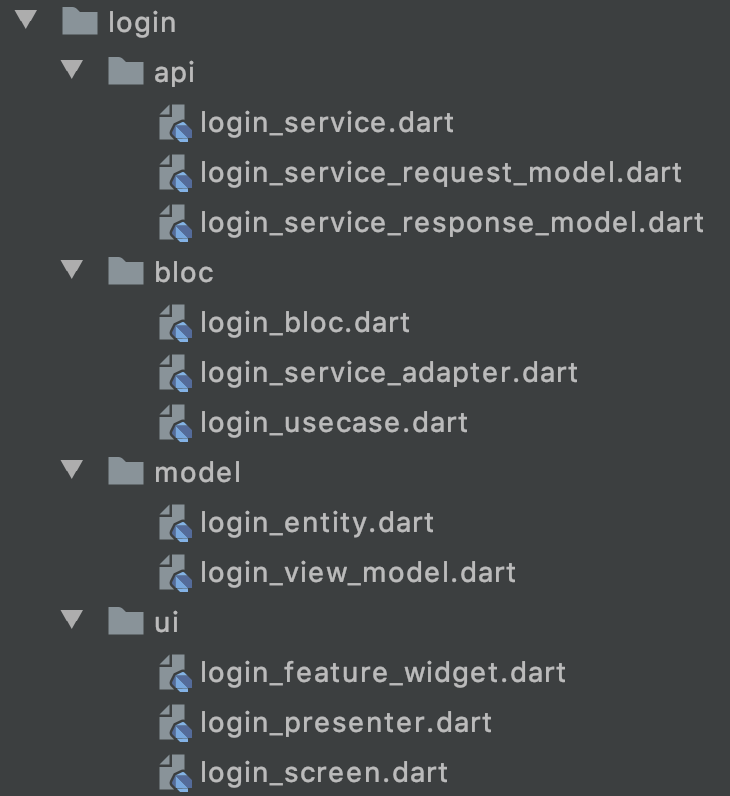

Directory Structure:

• api            (Service and Service Models directory)
• bloc          (Business Logic, Use Case, & Adapter                    directory)
• model      (Entity and View Model directory)
• ui              (Feature Widget, Presenter, and UI                   directory)

Service Models

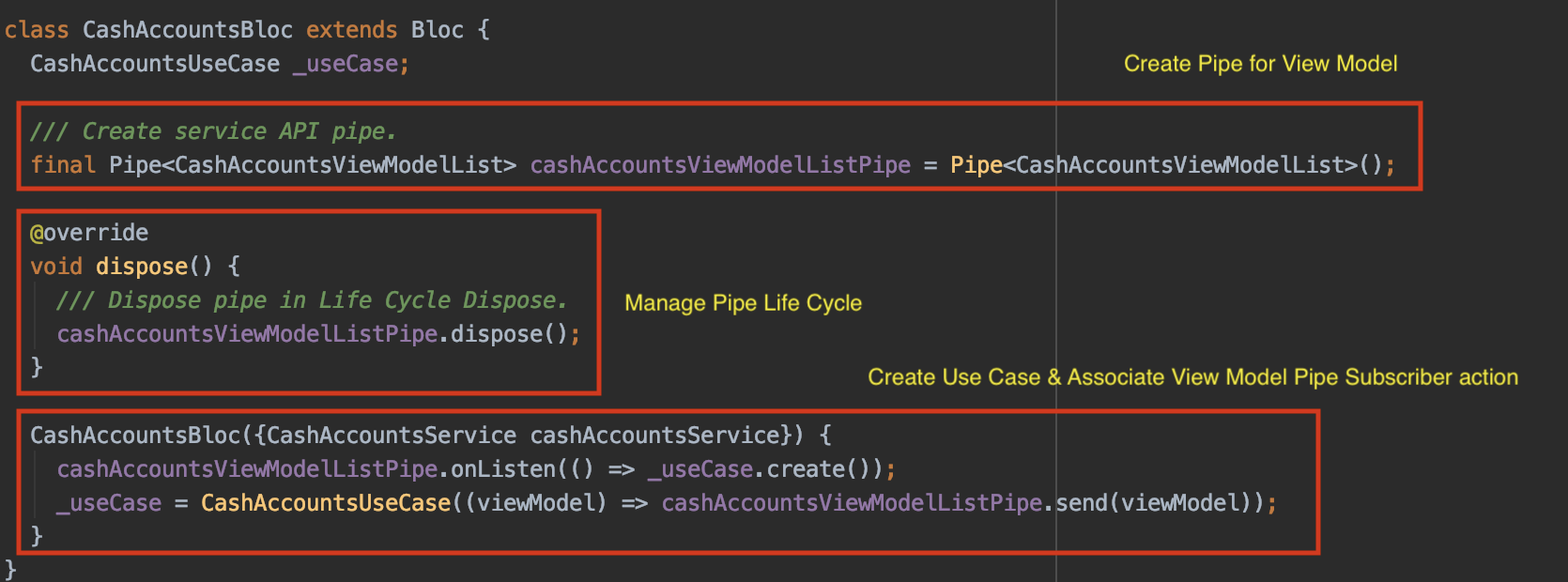

BLoc

• Executes the use case(s) created
• Utilizes the pipe(s) created (setup listeners and send data)
• Properly disposes pipe with dispose method
• Provides BLoc constructor
• Sets up the Use Case(s) with a pipe to send out the view model
• However, the View Model call back functionality resides in the Use Case

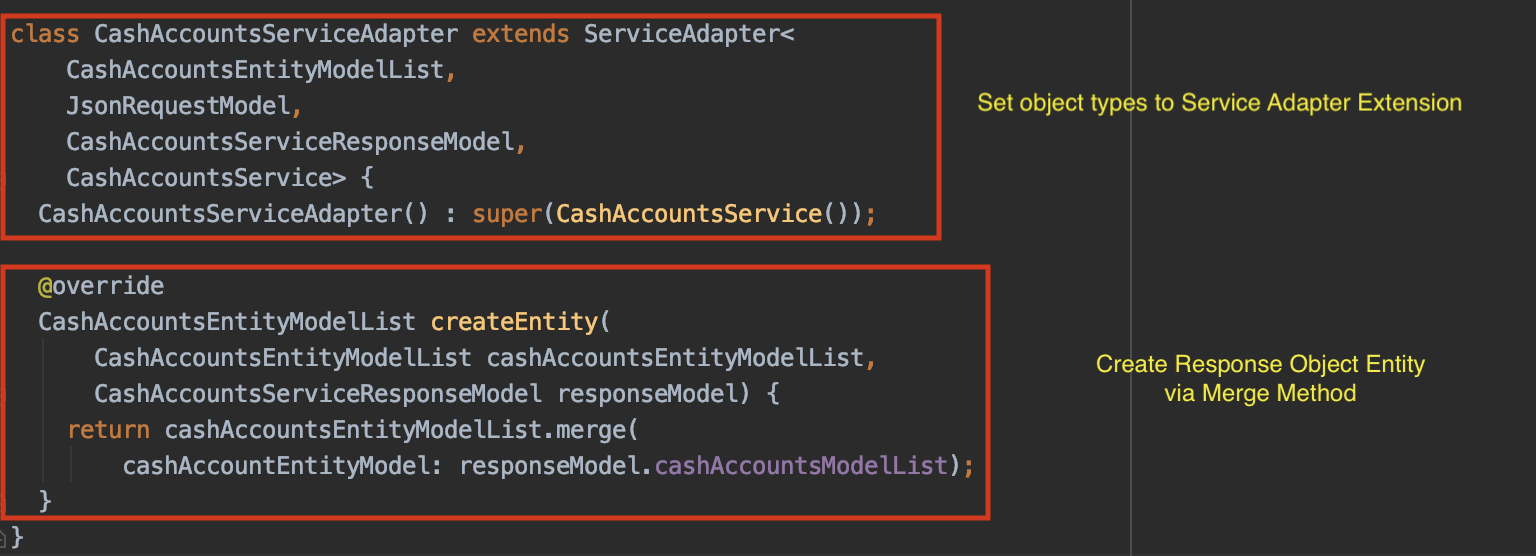

Service Adapter

• Entity Model
• JSON Model
• Service Response Model
• Service Class Being Called

Use Case

Entity

View Model

Feature Widget

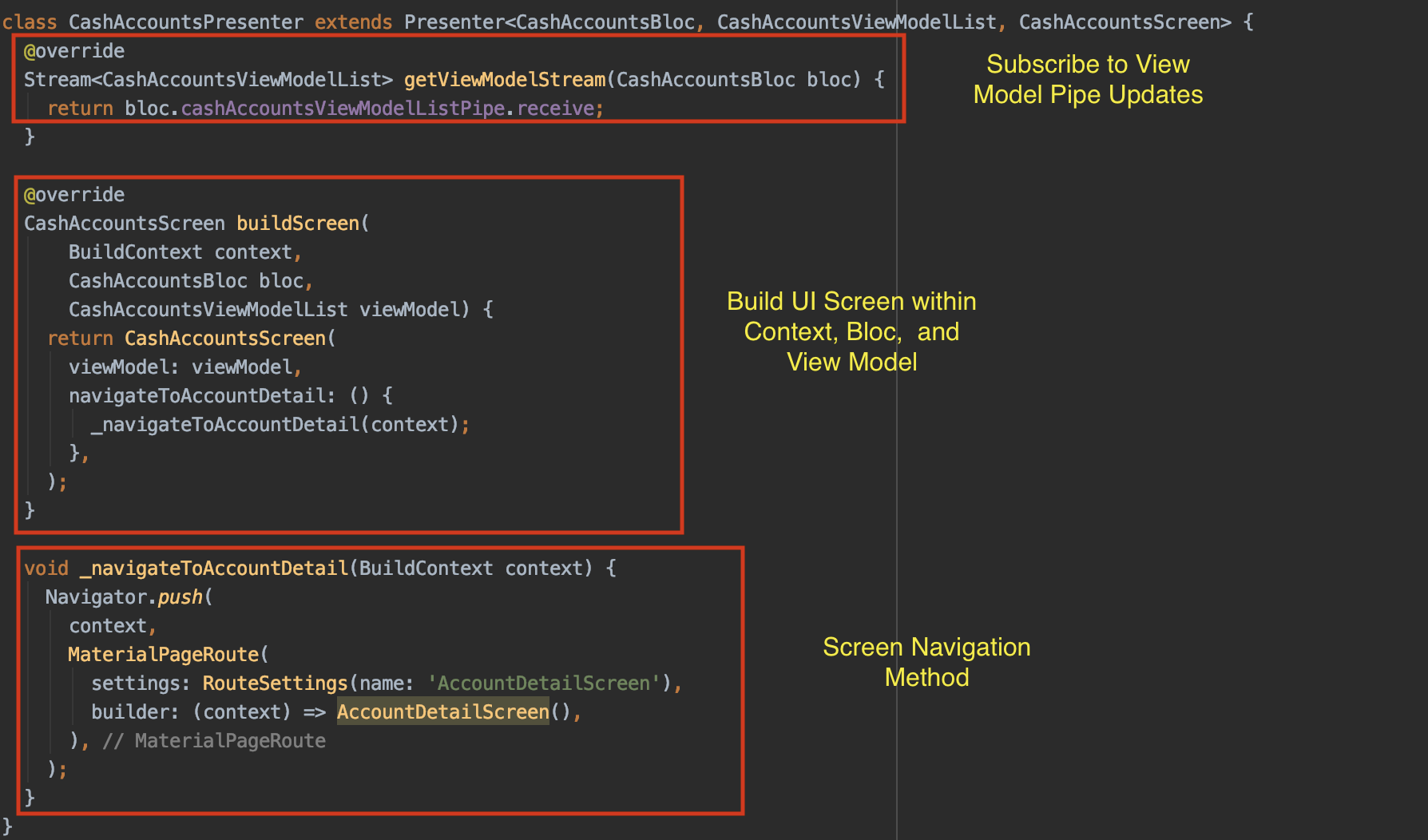

Presenter

• BuildContext
• BLoc
• View Model

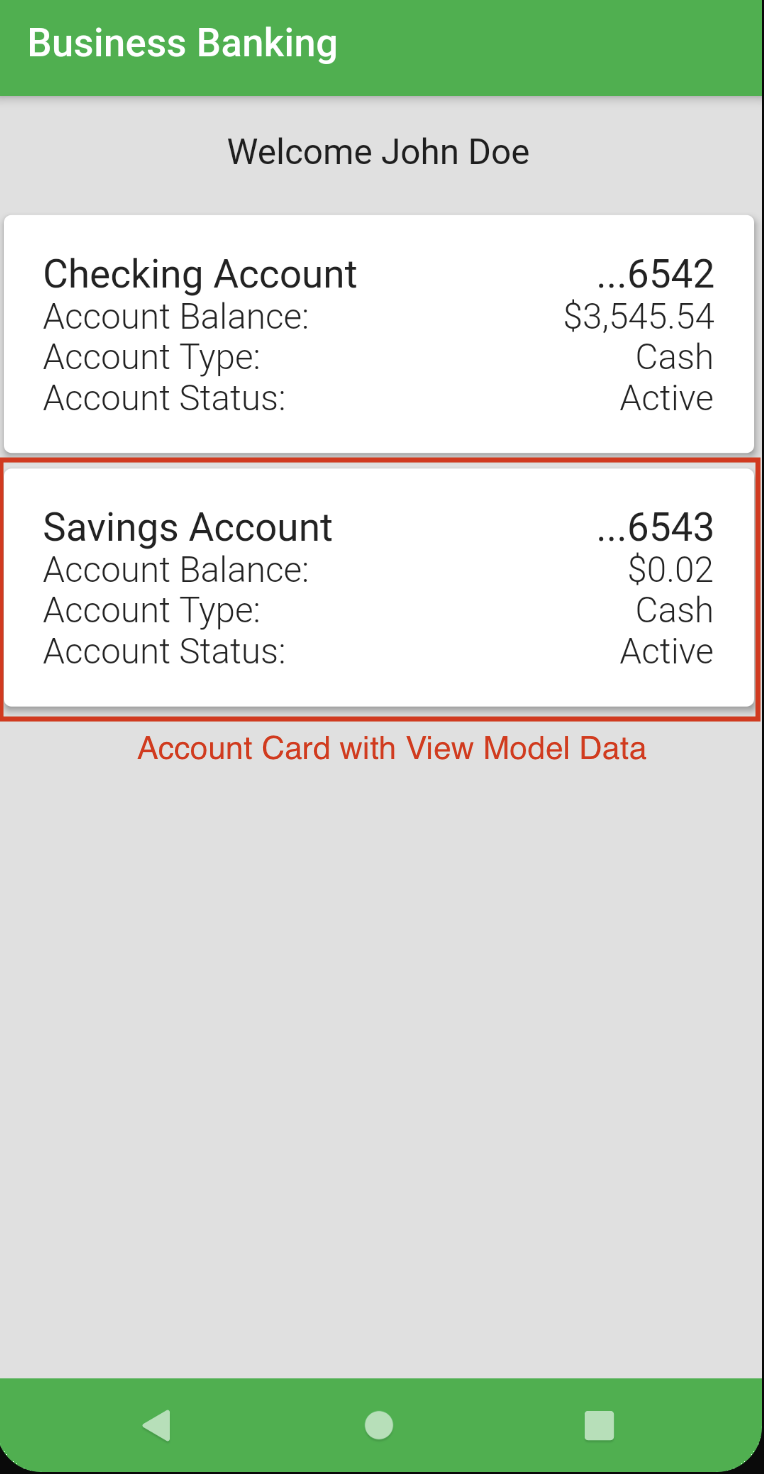

Screen

• Implementation Type: Entity List Structure

• Creates usage of abstraction instead of concretes

• Literally with a Map object collection

• Associates Scopes to Entity Types

• Via the Repository Scope

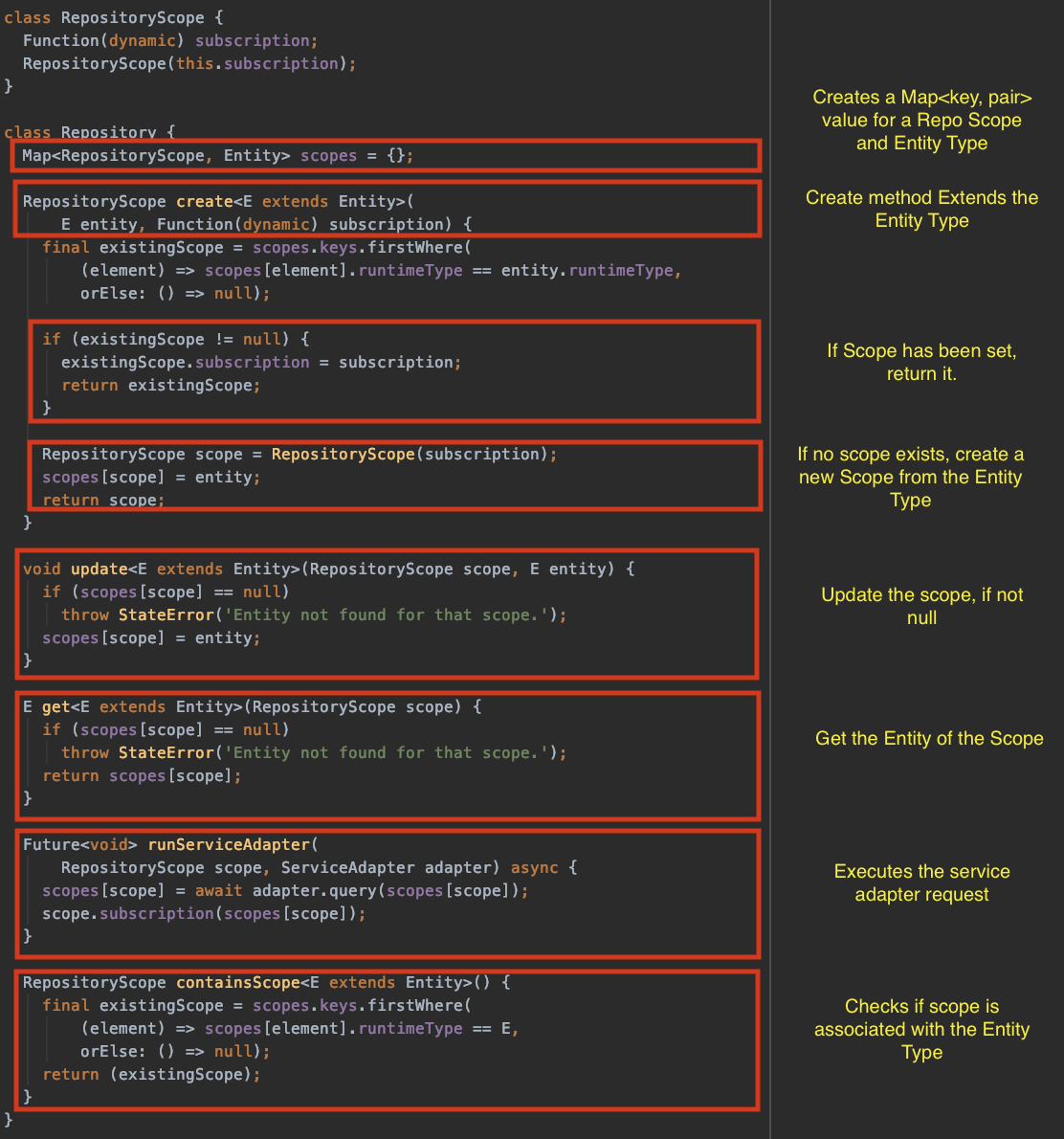

Maps Scope to Entities

Repository contains Entities with data and Scope mapped to that Entity:

        /// Creates a Map collection of Repository Scope and Entity Type.
        Map<RepositoryScope, Entity> scopes = {};

To get a Scope for current Entity use method:

        /// Checks if a Scope is associated with a specific Entity Type.
        containsScope<E extends Entity>()

To get an Entity for current scope use method:

        /// Returns the Entity associated with the Scope in the Map collection.
        get<E extends Entity>(RepositoryScope scope)

Manages Scopes

To create a new scope for an existing Entity use method:

        /// Creates a Scope if One is not already set, if set return existing scope.
        create<E extends Entity>(E entity, Function(dynamic) subscription)

To update a scope for an existing Entity use method:

        /// Updates an existing Scope to a scope provided to the method.
        update<E extends Entity>(RepositoryScope scope, E entity)

Executes Service Adapter

To execute the Service Adapter use method:

        /// Execute the provided Service Adapter with the associated Scope.
        runServiceAdapter(RepositoryScope scope, ServiceAdapter adapter)

What should be contained in a Use Case?
